CPS8841H
Application
Power adapters
Power dongles
Car chargers
CPS8841H is a highly integrated fast charge protocol source controller that supports charging protocols
| Part Number | CPS8841H | |
|---|---|---|
| Port | Type-C | |
| CC1/2 DP/DN voltage | 28V/6.5V | |
| Current sense | High-side | |
| LPS | √ | |
| VCONN Power | √ | |
| Feedback | Opto | |
| Memory | OTP | |
| Protocols | PD3.1&PPS QC2.0/3.0 SCP | |

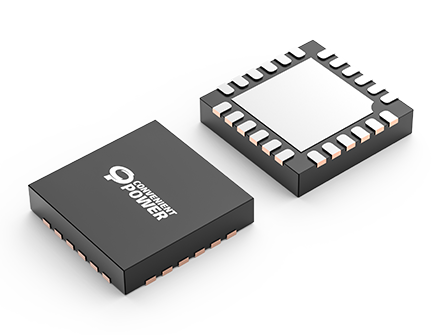

| Package | QFN-24 4mm*4mm | |
Suitable for 3.3V to 21V output voltage range
USB-lF Certification TlD: 11270
UFCS Certification lD: UFCS00110
Supports OPTO control for ACDC converter &FB control for DC/DC converter
Dual High-side / Low-side current sense
Integrated Vin/Vbus discharge function
Support master/slave 2C communication
Dual independent load switch N-MOSFET driver with soft start
Dual DPDN channels with independent BC1.2 functionality, sharing one fast charging protocol PHY
AC input voltage detection and LPS detection
Integrated temperature sensor
Integrated VCONN power for E-marker recognition
Support Rp pull-up power supply change from 5V to 3.3V in standby mode
Programmable 5 GPlOs
Programmable OVP/UVP/OCP/OTP
RoHS,Halogen-Freeead-Free:Comolant
